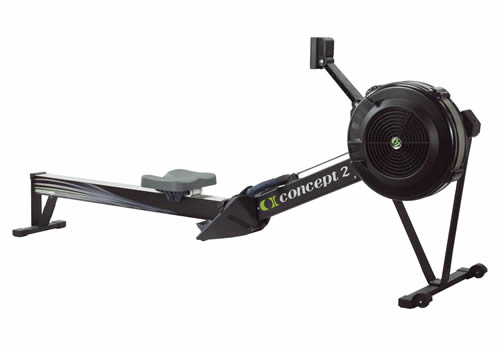

Black Model D Indoor Rower

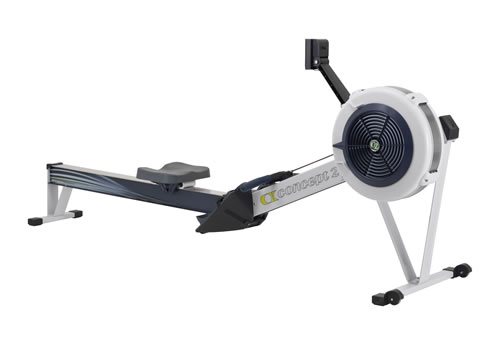

Grey and Light Blue Model D Indoor Rower
August 2006–Late July 2012

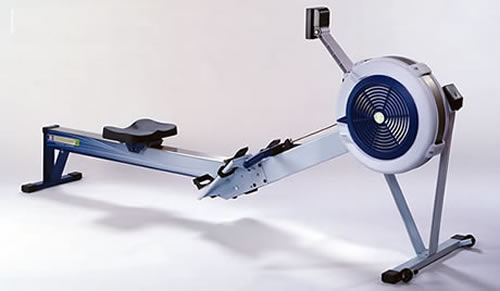

Blue and Light Blue Model D Indoor Rower
July 2003–August 2006

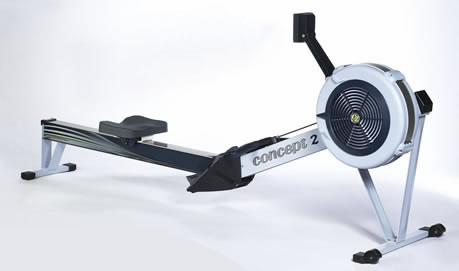

Updated in August 2006 with the following features:
- Modified monorail artwork
- Redesigned foot stretchers
- Updated frame lock mechanism
- Handle: Ergonomic handle featuring a 10 degree bend
- Flywheel Housing: Damper setting numbers molded into the flywheel cover
Serial Number Location
Prior to October 17, 2005
The label is located between the V of the flywheel support legs, on the bottom side of the rower. The serial number represents the date the rower was boxed (mm/dd/yy). An example Model D serial number from this time frame is 082205/1.
October 17, 2005 to Present
Located between the V of the flywheel support legs, the label is located on the left side of the flywheel housing. See illustration.
The serial number contains three groups of numbers separated by dashes. When asked for the serial number of your indoor rower, this is the number to use. Note: The first group of numbers represents the date the unit was boxed.
